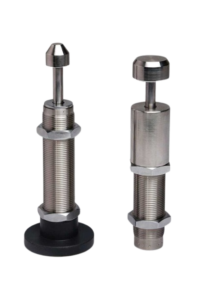

Shock Absorbers for Switchgear
Protect Your Switchgear
Ensure Reliable Operations
Key Features
Precise control over Over travel and Rebound
Corrosion-Resistant Materials
Ensures durability in harsh environments, including high humidity or corrosive conditions. Our collaboration with ARCOR technologies help us deliver components with a garunteed anti corrosive finish upto 7 years
Temperature Tolerance
Operates efficiently in a wide range of temperatures, making it ideal for challenging environments.We can adapt to special sealing and hydraulic oils in case your application demands extreme hot hot extreme cold conditions. We cater to any MIL standards MIL -STD-810
Maintenance-Free Design
Requires minimal upkeep, reducing downtime and operational costs
Applications
Our shock absorbers for switchgear are ideal for

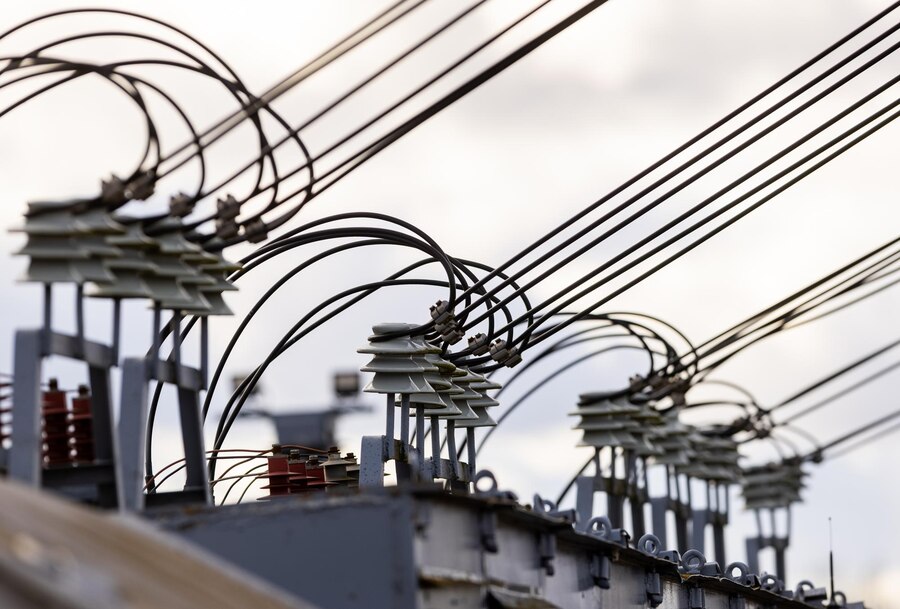

Power Distribution Systems
Minimizing vibrations in medium and high-voltage switchgear
Transportation Protection
Ensuring safe transport of switchgear units
Seismic Zones
Enhancing safety and stability in areas prone to earthquakes
Industrial and Commercial Setups
Protecting switchgear in factories, data centers, and office complexes

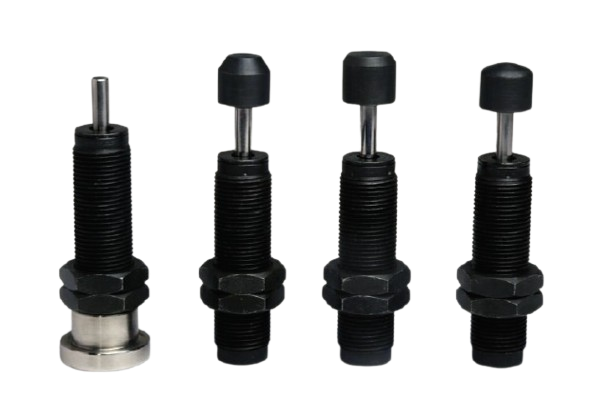

Dimensions and Specifications
DLC series
Performance and Parameters
| Model | Stroke (mm) | Maximum absorbed energy Nm(ET) | Absorbed Energy per hour Nm(ETc) | Maximum effective weight kg(me) | Highest impact speed M/S (v) | Positioning temperature (non frozen) (°C) | Weight (g) | |
|---|---|---|---|---|---|---|---|---|
| DLC3610 | 10 | 60 | 54,000 | 260 | 3.5 | -20–85 | 634 | |
| DLC3615 | 15 | 84 | 75,600 | 400 | 4.0 | 20–85 | 650 | |
| DLC4213 | 13 | 155 | 186,000 | 1,240 | 1.0 | -20-+85 | 890 | |
| DLC10010 | 10 | 1050 | 1,260,000 | 10 | 15 | 40–85 | 8800 | |
| Model | Stroke (mm) | Maximum Absorbed Energy Nm (ET) | Absorbed Energy per Hour Nm (ETc) | Maximum Effective Weight kg (me) | Highest Impact Speed M/S (v) | Positioning Nut (sc) | Operating Temperature (°C) | Weight (g) |
| DLD2517 | 17 | 55 | 37,200 | 300 | 1.5 | 0 | -20-+85 | 337 |
| DLD2520 | 20 | 68 | 43,200 | 200 | 4.5 | 0 | -20-+85 | 269 |
| ET300 | 25 | 84 | 75,600 | 240 | 4.0 | 0 | -20-+85 | 364 |
| DLD3010 | 10 | 65 | 54,000 | 143 | 3.0 | 0 | -20-+85 | 342 |
| DLD3015 | 15 | 98 | 81,400 | 250 | 3.0 | – | -20-+85 | 368 |
| DLD3607 | 7.5 | 65 | 85,800 | 240 | 4.0 | – | -20-+85 | 667 |
| DLD3608 | 8 | 75 | 99,000 | 306 | 4.0 | – | -20-+85 | 620 |
| DLD4212 | 12 | 140 | 168,000 | 1,100 | 8.0 | – | -40~+85 | 1,610 |
How to Order
Share your switchgear specifications and application details
Receive a customized recommendation and pricing
