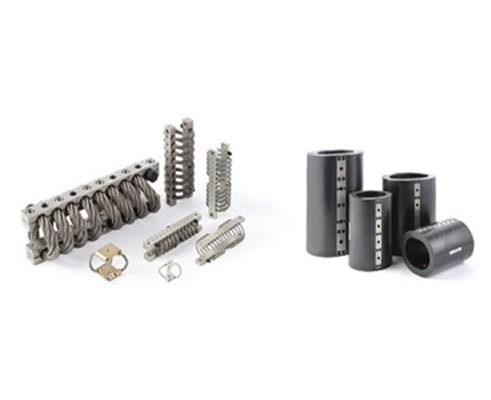

Wire Rope Isolator

A Wire Rope Isolator is a robust and versatile vibration isolation device made from stainless-steel wire ropes that are looped and clamped between metal mounting bars. It is designed to absorb and reduce shock, vibration, and noise in various mechanical systems and equipment. These isolators are particularly valued for their durability, wide temperature tolerance, and ability to perform under extreme conditions

Ensure the safety and longevity of your equipment with Adonitech’s Wire Rope Isolators, the ultimate solution for shock and vibration isolation. Designed for durability and high performance, our wire rope isolators are crafted to deliver optimal vibration damping, noise reduction, and equipment protection across diverse industries

Key Features

Applications

Adonitech Wire Rope Isolators are trusted across industries

Dimensions and Specifications

Wire Rope Vibration Isolators

Compact Wire Rope Vibration Isolators

Wire Rope Vibration Isolators

WR2 Series

Model	Height (“H”) mm		Width (Re) mm	Unit Weight Kg	Mounting Options	Thru Hole mm	Thread mm	C’Sink Metric
WR2-100	18	25 ± 1.52	25	0.02	B, D, E	Ø4.7 ± 0.13	M4 X 0.7	90°
WR2-200	20		28	0.02
WR2-400	25		30	0.03
WR2-600	28		33	0.03
WR2-700	30		36	0.03
WR2-800	33		38	0.03

WR3 Series

Model	Height (“H”) mm		Width (Ref) mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric
WR3-100	23	± 1.52	28	0.06	B, D, E	Ø5.6 ± 0.13	M5 X 0.8	90°
WR3-200	25		30	0.07
WR3-400	28		33	0.07
WR3-600	33		38	0.07
WR3-700	36		41	0.07
WR3-800	38		43	0.08

WR4 Series

Model	Height (“H”) mm		Width (Ref) mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric
WR4-100	28	± 1.52	36	0.12	B, D, E	Ø6.9 ± 0.13	M6 X 1.0	90°
WR4-200	30		38	0.12	B, D, E
WR4-400	33		41	0.13	A, B, C, D, E, S
WR4-500	36		43	0.13
WR4-600	38		46	0.13
WR4-700	41		48	0.14
WR4-800	43		51	0.14

WR5 Series

Model	Height (“H”) mm		Width (Ref) mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric
WR5-200	30	± 1.52	41	0.15	B, D, E	Ø6.9 ± 0.13	M6 X 1.0	90°
WR5-400	33		43	0.15	B, D, E
WR5-600	38		48	0.16	A, B, C, D, E, S
WR5-800	46	± 3.30	53	0.17
WR5-900	53	± 3.30	64	0.18

WR6 Series

Model	Height (“H”) mm		Width (Re) mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric
WR6-200	30	± 1.52	36	0.19	D	Ø6.9 ± 0.13	M6 X 1.0	90°
WR6-300	33		38	0.20	D
WR6-400	36		41	0.21	B, D, E
WR6-500	38		43	0.21	A, B, C, D, E, S
WR6-600	41		46	0.22
WR6-700	43		48	0.25
WR6-800	51		58	0.26
WR6-850	54	± 3.30	75	0.27
WR6-900	62		88	0.28
WR6-950	81		107	0.29

WR8 Series

Model	Height (“H”) mm		Width (Ref) mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric
WR8-200	48	± 2.54	56	0.38	A, B, C, D, E, S	Ø6.9 ± 0.13	M6 X 1.0	90°
WR8-400	54		64	0.41
WR8-500	59		71	0.43
WR8-600	64		80	0.47
WR8-700	64		89	0.52
WR8-800	67	± 3.81	95	0.54
WR8-850	67		100	0.57
WR8-900	83		108	0.59

WR12 Series

6-Loop

Model	Height (“H”) mm		Width (Ref) mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric
WR12-206	71	± 2.54	84	0.83	A, B, C, D, E, S	+ 0.13 Ø9.0 -0.38	M6 X 1.0	90°
WR12-306	74		89	0.85
WR12-406	76		105	0.90
WR12-506	83		108	0.95
WR12-606	89		108	0.98
WR12-706	105		121	1.07
WR12-806	108		140	1.12

WR12 Series

Model	Height (“H”) mm		Width (Ref) mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric
WR12-200	71	± 2.54	84	1.10	A, B, C, D, E, S	+ 0.13 Ø9.0 -0.38	*M8 X 1.25	90°
WR12-300	74		89	1.13
WR12-400	76		105	1.20
WR12-500	83		108	1.26
WR12-600	89		108	1.30
WR12-700	105		121	1.43
WR12-800	108		140	1.50

WR16 Series

6-Loop

Model	Height (“H”) mm		Width (Ref) mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric
WR16-206	76	± 2.54	92	1.36	A, B, C, D, E, S	+ 0.13 Ø9.0 -0.38	*M8 X 1.25	90°
WR16-306	83		102	1.43
WR16-406	89		105	1.50
WR16-606	95		121	1.67
WR16-706	108		133	1.81
WR16-806	124		144	2.02
WR16-856	137		156	2.18
WR16-906	155		180	2.31

WR16 Series

Model	Height (“H”) mm		Width (Ref) mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric
WR16-206	76	± 2.54	92	1.81	A, B, C, D, E, S	+ 0.13 Ø9.0 -0.38	*M8 X 1.25	90°
WR16-306	83		102	1.91
WR16-406	89		105	2.00
WR16-606	95		121	2.22
WR16-706	108		133	2.40
WR16-806	124		144	2.70
WR16-856	137		156	2.90
WR16-906	155		180	3.09

WR20 Series

Model	Height (“H”) mm		Width (Ref) mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric
WR20-200	89	± 3.30	102	3.00	C, D	+ 0.13 Ø11.0 -0.38	M10 X 1.5	90°
WR20-300	99		112	3.20	A, B, C, D, E, S
WR20-400	102		121	3.40
WR20-600	109		135	3.70
WR20-700	119		152	4.00
WR20-800	127		165	4.31
WR20-900	135		178	4.63

WR28 Series

Model	Height (“H”) mm		Width (Ref) mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric
WR28-200	133	± 6.35	140	8.40	C, D	+ 0.13 Ø13.5 – 0.38	M12 X 1.75	90°
WR28-400	152		165	9.53	A, B, C, D, E, S
WR28-600	159		178	9.90
WR28-800	191		210	11.50
WR28-900	216		235	12.70
WR28-950	216		286	13.90

WR36 Series

Model	Height (“H”) mm		Width (Ref) mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric
WR36-200	178	± 6.35	216	20.9	A, B, C, D, E, S	+ 0.13 Ø19.8 – 0.38	M18 X 2.5	90°
WR36-400	216		241	24.0
WR36-600	235		260	25.0

WR40 Series

Model	Height (“H”) mm		Width (Ref) mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric
WR40-200	178	± 6.35	210	24.0	A, B, C, D, E, S	+ 0.13 Ø19.8 – 0.38	M18 X 2.5	90°
WR40-400	216	± 6.35	248	27.2	A, B, C, D, E, S	+ 0.13 Ø19.8 – 0.38	M18 X 2.5	90°

Compact Wire Rope Vibration Isolators

CR1 Series

Model	Height (“H”) mm		Width (Ref) “W” mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric
CR1-100	17	± 1.52	19	3.1	A, B, C, D, E, S	Ø3.30	M3 X 0.5	90°
CR1-200	19		20	3.1
CR1-300	23		23	3.4
CR1-400	26		26	3.4

CR2 Series

Model	Height (“H”) mm		Width (Ref) “W” mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric
CR2-100	16	± 1.52	20	3.7	A, B, C, D, E, S	Ø3.30	M3 X 0.5	90°
CR2-200	19		21	4.0
CR2-300	23		24	4.3
CR2-400	27		27	4.5

CR3 Series

Model	Height (“H”) mm		Width (Ref) “W” mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric
CR3-100	19	± 1.52	22	5.7	A, B, C, D, E, S	Ø3.30	M3 X 0.5	90°
CR3-200	23		24	6.2
CR3-300	27		27	6.8
CR3-400	33		30	7.4

CR4 Series

Model	Height (“H”) mm		Width (Ref) “W” mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric
CR4-100	42	± 1.52	47	40	A, B, C, D, E, S	Ø7.00	M6 X 1.0	90°
CR4-200	53		54	40
CR4-300	60		59	43
CR4-400	75		68	48

CR5 Series

Model	Height (“H”) mm		Width (Ref) “W” mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric
CR5-100	41	± 1.52	48	45	A, B, C, D, E, S	Ø7.00	M6 X 1.0	90°
CR5-200	53		54	48
CR5-300	60		59	51
CR5-400	76		67	57

CR6 Series

Model	Height (“H”) mm		Width (Ref) “W” mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric
CR6-100	47	± 1.52	54	57	A, B, C, D, E, S	Ø7.00	M6 X 1.0	90°
CR6-200	55		59	62
CR6-300	64		64	65
CR6-400	79		73	74

Why Choose Adonitech Wire Rope Isolators?
